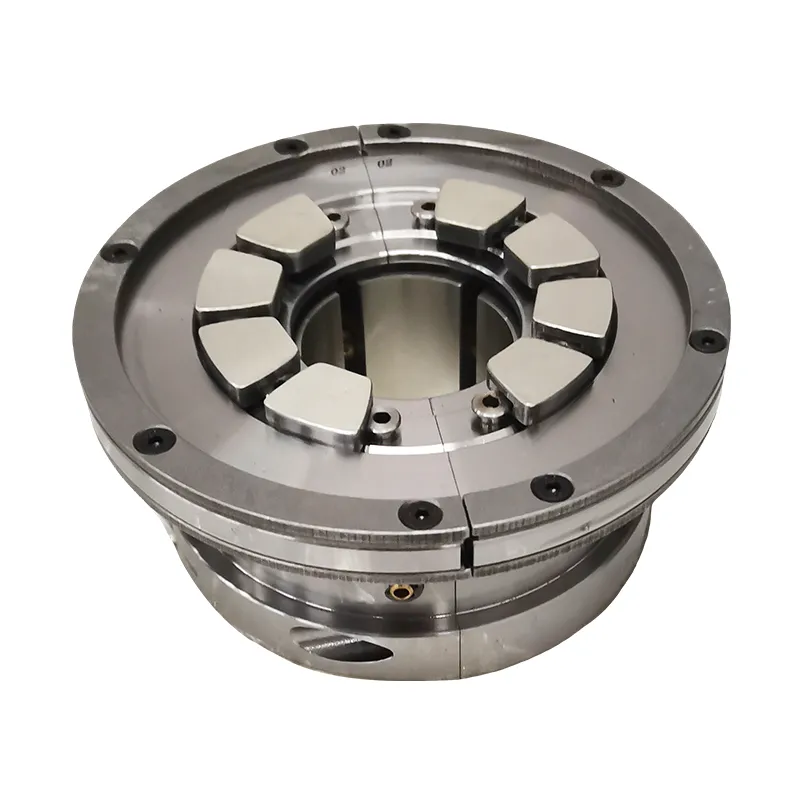

Radial Pad Bearing
Radial Pad Bearing

Radial Pad Bearing

Share:

Applications of Radial pad bearing: expander, gearbox, compressor, steam turbines, high speed motor and generator.


Our bearings are exchangeable of atlas  bearing, renk bearing and DAIDO METAL bearing.


We can customize journal thrust plain bearings according to your special requirements.

WhatsApp: +86 180 5841 8672

E-mail: info@journalbearings.com

Product Details

JOURNAL Radial bearings are specialized bearings designed primarily to support radial loads. These bearings play a crucial role in reducing friction and vibration in high-performance applications. Examples of radial bearings include deep groove ball bearings, cylindrical roller bearings, and needle bearings.


Types of Bearings Based on Load Support


Rolling element bearings are categorized based on the type of load they support:


  • Radial Bearings: Primarily support radial loads but can handle limited thrust loads under specific conditions.

  • Angular Contact Bearings: Designed to support a combination of radial and thrust loads.

  • Thrust Bearings: Specifically engineered to support axial (thrust) loads.


Among these, Radial Pad Bearings excel at supporting perpendicular loads, ensuring smooth and efficient operation.


Featurers of Radial Pad Bearing


Maximum linear speed: 120m/s

Speed range: 5000rpm-70000rpm

Bore dia. Max.1500mm

Pad substrate material: 42CrMo or Cu-Cr

Bearing with tilting pad thrust or fixed thrust

Low temperature with RTD

various designs for different styles

Pads with linear or spherical pivots

Babbitt (Tegostar 738) meets Europe REACH requirements


Email: info@journalbearings.com


Benefits of Radial Bearings in Turbomachinery


Bearings are essential in turbomachinery, where they reduce friction caused by metal-to-metal contact. Turbomachinery experiences two main types of loads:


  • Radial Loads: Perpendicular to the shaft's axis.

  • Axial Loads: Also known as thrust loads, which act horizontally.


When both load types are present, fluid film bearings (also known as slide contact bearings) are preferred. They rely on hydrodynamic film pressure to separate rotating and stationary surfaces, ensuring minimal wear and maximum efficiency.


Why Choose JOURNAL as Your Radial Pad Bearing Supplier?


Engineers at JOURNAL leverage advanced design features to create custom radial pad bearing solutions that deliver superior performance:


Directed Lubrication


This feature minimizes power loss, keeps pad temperatures low, and enhances load capacity.


Alternative Pad Backing and Surface Materials


Designed to withstand higher temperatures and dissipate heat more effectively, these materials increase the bearing's load-carrying capacity.


Pad Pivot Types


These configurations enhance the bearing's capacity to handle axial misalignment and heavy loads.


Pad Geometries


Optimized for dynamic machine performance, these geometries increase stability and create optimal stiffness and damping characteristics.


Hydrostatic Lift


Configurations include hydrostatic lift capabilities to accommodate high loads during machine start-up without sacrificing load capacity.


Advanced Materials


Radial pad bearings made with advanced materials can operate at higher temperatures and maintain thinner films than traditional babbitt-lined bearings.


Instrumentation Options


These bearings can be equipped with sensors, such as temperature monitors and proximity probes, to provide critical measurements and detect potential machine malfunctions.


Radial Pad Bearings are an indispensable component in high-speed and high-load applications. Their adaptability, durability, and advanced features make them a reliable choice for industries demanding precision and performance. From reducing friction to accommodating complex load scenarios, these bearings ensure efficient and stable operation in a variety of machinery applications.


With expert engineering and innovative designs, JOURNAL radial pad bearings continue to set the standard for load support and operational excellence in rotating equipment.


Radial Pad Bearing

Factory Appearance

HANGZHOU JOURNAL BEARING CO., LTD is equipped with the precision machine, such as advanced CNC machining centers, Babbitt alloy coating equipment, heat treatment capabilities, babbitt alloy molding machinery.

Working Enviroment (Attitude, Detail, Goal, Action)

Packing and Shipping

Employing a highly streamlined and effective system of inventory and production management, we are able to optimize our factory to ensure prompt reply and efficient service, thereby enabling us to consistently offer customers remarkably short delivery.

Exhibition (Export quality bearings all over the world )

SUBMIT MY INQUIRY

Hello, welcome to submit any questions and suggestions. We will reply to you as soon as possible.

Thank you for your support and help.

Service E-mail: info@journalbearings.com

Contact Us
*
*
*
*
*
*

RELATED PRODUCTS

FAQ

Q:How is the product packaged?

A:Standard export packing with plastic bag inside and plastic foam material to protect bearings, outside with plywooden case.

Q:Is there any quality inspection before delivery?

A:All parts before assembly will be measured. Only quality parts will be assembled into the bearings. When bearing is ready, we will do strict quality inspection before delivery.

Q:What are the usual loading port?

A:Usually we ship goods from Shanghai, and Ningbo port. We could also make shipment depend on your needs.

Q:Can you deliver the goods on time?

A:From raw material to machined parts, we produce by ourselves, so we could control the delivery time.

Q:Can I visit your factory?

A:Customers from all over the world are welcomed to our factory. We will show you our production in our factory.

Q:What’s the MOQ?

A:MOQ is one pcs.

Q:Can you customize the tilting pad bearing according to my requirement?

A:With a professional skilled and dedicated research team, we could produce special bearings designed precisely to customer’s need, whatever you supply us samples or drawings to us

Q:How can I contact with you by efficient way?

A:You could contact with us by email, wechat or whatsapp, we will reply you asap.

CUSTOMIZED PRODUCTS

With a technical team of over 30 professionals

We can customize a wide variety of journal thrust plain bearings according to different requirements

Supply bearing design proposals and calculation reports within 3-5 working days
