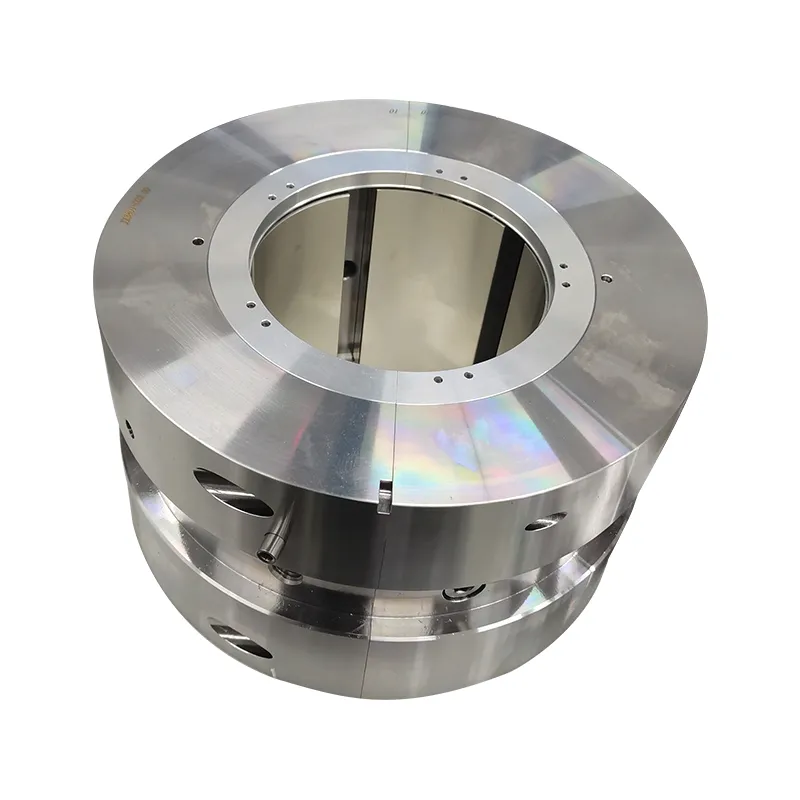

High Speed Tilting Pad Bearings

High Speed Tilting Pad Bearings are a type of fluid film bearing used in high-performance rotating machinery such as high speed gearbox. These bearings, including our premium Tilting Pad Bearing, provide self-alignment, dynamic stability, and effective load distribution. Additionally, our range of Tilt Pad Bearings offers enhanced customization, ensuring that each bearing is optimized for its specific operating conditions.

Tilting Pad Bearing technology is integral to our advanced designs at JOURNAL Bearings. Our innovative Tilting Pad Bearing solutions deliver exceptional stability, adaptability, and load capacity in rotating machinery. From the very first inspection, the high speed tilting pad bearing ensures precision and reliability, meeting the rigorous demands of modern industrial applications.

High Speed Tilting Pad Bearings Specification

Average pressure: 3.0Mpa

Bore diameter: 1500mm

Range of Bearing bore diameter: 30mm to 450mm

Range of Speed: 5000rpm-56000rpm

Pads substrate material: 42CrMo

Pivot offset: 0.5, 0.55, 0.6

Reduced temperature increase and vibration with resistance temperature detector

Pads with linear or spherical pivots

Design for high speed gearbox with 2-axial, 3-axial, 4-axial, 5-axial, 6-axial

Babbitt (Tegostar 738) meets Europe REACH requirements

Self-aligning, adjustable bearing clearance

Material Options:

Our Tilting Pad Bearing systems are available in a variety of high-quality materials to suit diverse operational requirements:

• White Metal (Babbitt): Traditional material offering excellent conformity.

• Polyether Ether Ketone (PEEK): Provides superior chemical and thermal resistance.

• Polytetrafluoroethylene (PTFE): Ensures low friction and high durability.

The choice of material is critical to ensure the durability and efficiency of each Tilting Pad Bearing in challenging environments. Our High Speed Tilting Pad Bearing stands out by offering these performance enhancements, ensuring that each unit not only meets but exceeds industry standards. Contact us for high-speed bearing customization and engineering support.

High Speed Tilting Pad Bearings Advantages

Hydrodynamically stable at high speeds

Accommodate varying conditions

Less sensitive to load direction or shaft misalignment than fixed profile bearings

Optimized lubrication for minimum power loss and pad temperature

Compact designs of combined thrust and journal bearings available

Advanced materials available to withstand high speeds, loads and operating temperatures, as well as special lubricant requirements

Applications of High Speed Tilting Pad Bearings

High-speed tilting pad bearings are widely utilized in a variety of critical rotating machinery applications where precise control, high reliability, and dynamic stability are essential. Their unique self-aligning design and hydrodynamic lubrication characteristics make them ideal for both journal and thrust bearing applications, especially under high-speed and high-load conditions.

Here are the primary industries and equipment where high-speed tilting pad bearings play a vital role:

1. Turbomachinery

In gas and steam turbines, tilting pad bearings offer excellent resistance to oil whirl and dynamic instability. Their ability to operate reliably at extremely high rotational speeds (often exceeding 10,000 RPM) makes them essential for supporting rotating shafts in power generation turbines.

Typical Equipment:

• Gas turbines

• Steam turbines

• Microturbines

• Expansion turbines

2. Centrifugal Compressors

Used in petrochemical plants, air separation units, and gas processing systems, centrifugal compressors often demand robust bearing solutions that can handle rapid acceleration, high temperatures, and vibration. Tilting pad bearings provide low-vibration operation and high-load capacity in these critical environments.

3. Industrial Generators

High-performance generators, particularly those in power plants and backup power systems, require bearings that can withstand long-term, continuous operation at high speed. Tilting pad bearings help improve operational lifespan while reducing maintenance frequency.

4. Blowers & High-Speed Fans

In HVAC systems, industrial ventilation, and dust extraction applications, high-speed fans and blowers use tilting pad bearings to ensure smooth rotation and minimal mechanical loss, particularly in variable-speed applications.

5. Pumps in Oil & Gas and Energy

Multistage pumps used in refineries, offshore drilling platforms, and hydrocarbon transport systems often incorporate tilting pad thrust bearings to manage axial loads and maintain alignment under fluctuating pressure and flow conditions.

6. Aerospace & Defense Equipment

In aircraft engine components and military turbines, weight, precision, and thermal stability are paramount. Aerospace-grade tilting pad bearings support high-speed shafts while maintaining tight tolerances in extreme conditions.

7. Test Benches & R&D Equipment

High-precision laboratory test benches or rotor dynamics research machines require bearings with excellent predictability and controllable damping characteristics. Tilting pad bearings offer these qualities, making them suitable for scientific and industrial testing environments.

Custom Applications Available

Our engineering team can customize tilting pad journal and thrust bearings for highly specific operational requirements—whether it's extremely high-speed rotation, heavy axial loading, or unique housing geometries. We support OEM & ODM solutions for global clients in energy, aviation, and industrial sectors. Contact us to discuss how our high-speed tilting pad bearings can improve the performance and reliability of your rotating equipment.

Why Choose Journal as Your High Speed Tilting Pad Bearings Supplier?

• Enhanced Load Capacity: Designed to handle high pressure and dynamic loads.

• Customizable Design: Options to modify pad number, pivot type, pivot offset, and pad arc to perfectly match your equipment's requirements.

• Robust Construction: Manufactured with materials like 42CrMo and advanced composites to deliver consistent performance even under extreme conditions.

• Optimized Performance: Reduced temperature increases and vibration, ensuring smooth operation and longevity.

As a leading Tilting Pad Bearing Supplier, Journal's advanced high speed tilting pad bearing delivers superior performance and adaptability in demanding environments. The customization options, material versatility, and robust design of tilting pad bearings make them an essential part of modern rotating machinery.

For unmatched quality and innovation, trust Journal's high speed tilting pad bearings to optimize the performance of your equipment - experience the precision of tilting pad bearings now. Request a Quote Now – Fast Response & Global Delivery
